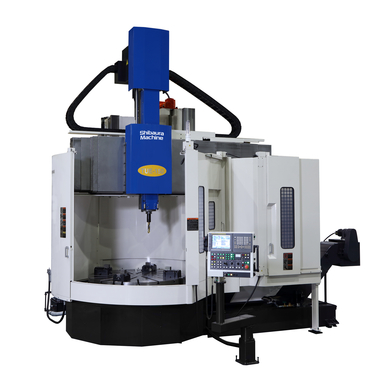

TUE Series is the economical solution for your turning needs yet achieves high quality turning capabilities. Option (S) type has a live spindle that performs drilling, tapping and boring operations.
Robust and high quality cast iron components of TUE Series assures high rigidity and accuracy of the machine.
The table supported by two bearings assures stable and high-speed powerful cutting even when machining a large diameter workpiece.
Quantity Available | 1 |
Type | Vertical Boring & Turning Mills |
Condition | New |
Dimensions | Table Diameter - 57.09 or 78.74 |
Maximum Swing | 78.74" or 94.49" |
Maximum height from table top to ram bottom | 67.72" |
Maximum Cutting Height | 61.02" |
Maximum Cutting Diameter | 78.74" or 94.49" |
Vertical Travel of Ram | 35.43" |
Vertical Travel of Arm | 39.38" |
